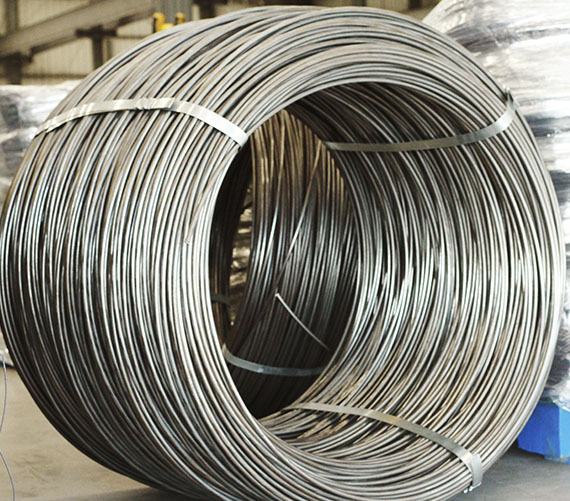

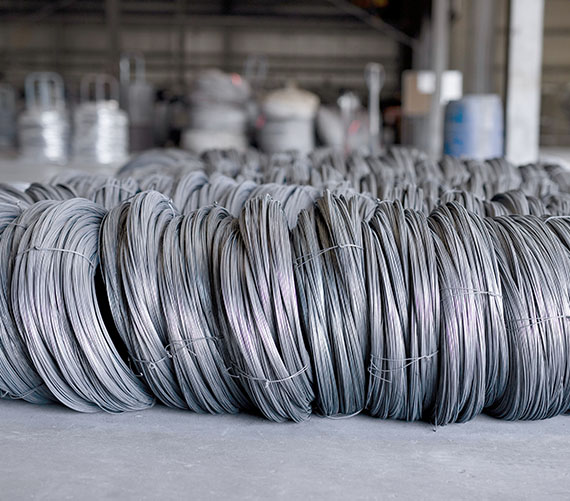

Bright wire is made using wire rod of different steel grades as a raw material. The steel grades depend on the final product to be made (springs, nails, screws, shelves, etc.)
Common applications
It is frequently used in the manufacture of cold-drawn steel rod, nails, brackets or rings, springs, shelves, hardware, etcetera.Measurement table
Length | Diameter | Weight (kg/m2) | Performance (m/Kg) | Tensile strength (Kg/cm) | |
|---|---|---|---|---|---|
mm | in | ||||
8.0 | 4.11 | 0.162 | 0.104 | 9.6 | 6 400 – 7 800 |
8.5 | 3.94 | 0.155 | 0.095 | 10.5 | 6 400 – 7 800 |
9.0 | 3.76 | 0.148 | 0.087 | 11.5 | 6 500 – 7 900 |
9.5 | 3.60 | 0.142 | 0.080 | 12.5 | 6 700 – 8 000 |
10 | 3.43 | 0.135 | 0.072 | 13.9 | 6 700 – 8 000 |
10.5 | 3.25 | 0.128 | 0.065 | 15.4 | 6 700 – 8 000 |
11.0 | 3.05 | 0.120 | 0.057 | 17.4 | 6 900 – 8 200 |
11.5 | 2.87 | 0.113 | 0.056 | 19.7 | 6 900 – 8 200 |
12.0 | 2.67 | 0.105 | 0.044 | 22.8 | 7 000 – 8 400 |
12.5 | 2.51 | 0.099 | 0.039 | 25.7 | 7 000 – 8 400 |
13.0 | 2.32 | 0.091 | 0.033 | 30.4 | 7 200 – 8 600 |
13.5 | 2.18 | 0.086 | 0.029 | 34.0 | 7 200 – 8 600 |
14.0 | 2.03 | 0.080 | 0.025 | 39.5 | 7 400 – 8 900 |
14.5 | 1.93 | 0.076 | 0.023 | 43.8 | 7 600 – 9 000 |
15.0 | 1.83 | 0.072 | 0.021 | 48.8 | 7 600 – 9 000 |
15.5 | 1.70 | 0.067 | 0.018 | 56.3 | 7 600 – 9 000 |
16.0 | 1.57 | 0.062 | 0.015 | 64.7 | 7 800 – 9 000 |
