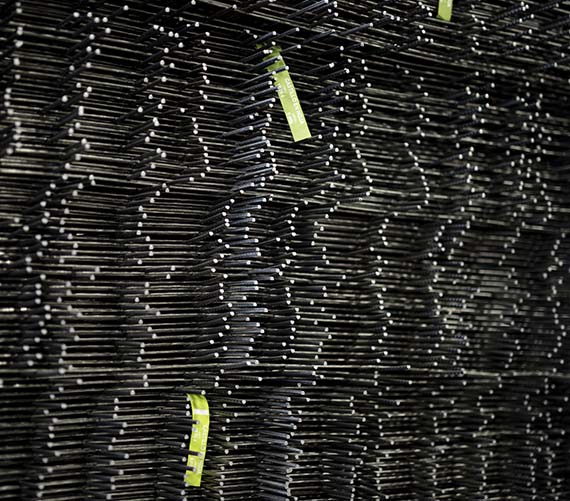

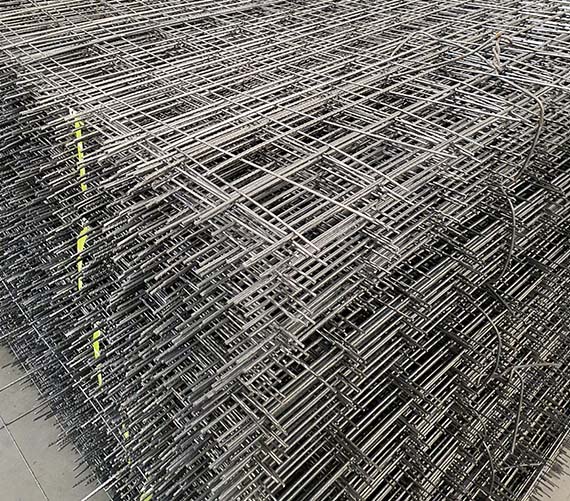

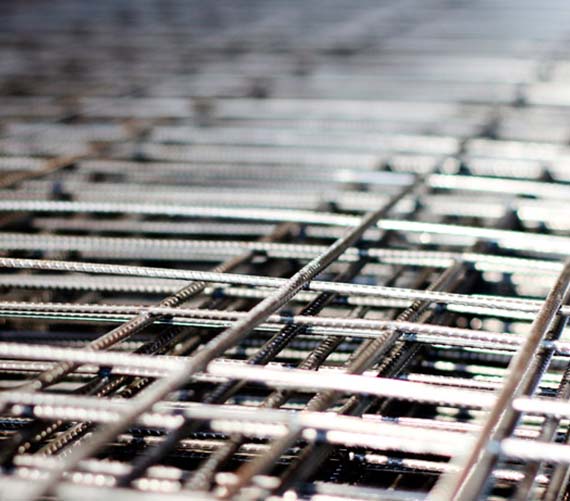

Mesh is made using rolling cassettes that provide the product with mechanical properties (elongation, resistance, rupture, etc.) prescribed by international construction standards.
Common applications
This product is used in the construction of columns in homes and warehouses.
Measurement table
Length | Rod diameter longitudinal | Stapes | Castle Section | Concrete Section | Spacing between stirrups | |
|---|---|---|---|---|---|---|
– | mm | mm | cal. | cm | cm | mm |
12×12 -4 | 6.35 | 4.11 | 8 | 8×8 | 12×12 | 158 |
12×20 -4 | 6.35 | 4.11 | 8 | 8×16 | 12×20 | 158 |
15×15 -4 | 6.35 | 4.11 | 8 | 11×11 | 15×15 | 158 |
15×20 -4 | 6.35 | 4.11 | 8 | 11×16 | 15×20 | 158 |
15×25 -4 | 6.35 | 4.11 | 8 | 11×21 | 15×25 | 158 |
15×30 -4 | 6.35 | 4.11 | 8 | 11×26 | 15×30 | 158 |
12×12 -3 | 6.35 | 4.11 | 8 | 8×8 | 12×12 | 158 |
15×15 -3 | 6.35 | 4.11 | 8 | 11×11 | 15×15 | 158 |
