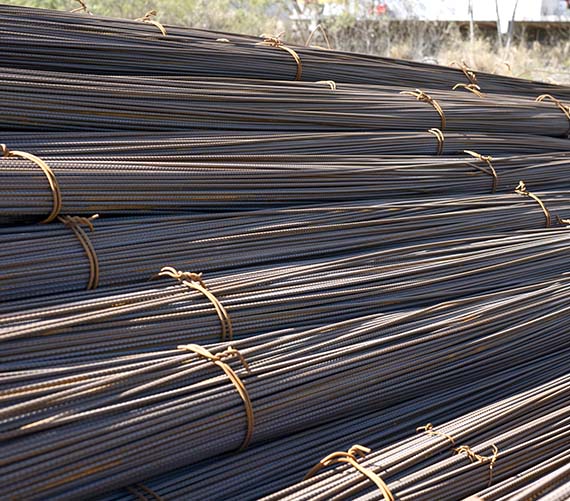

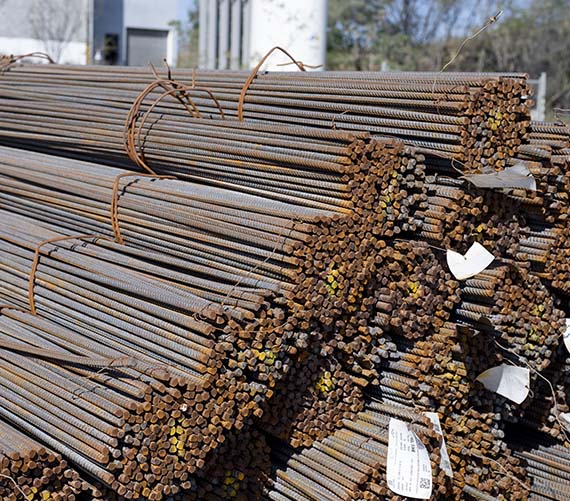

Rebar is a hot-rolled product sold in diameters ranging from 3/8″ (.95cm) to 1 ½” (3.81cm). Manufactured under the Official Mexican Standard NM-B-6.
Common applications
Used in the construction industry for the reinforcement of concrete floors. Also used in the fabrication of columns for homes, warehouses, etcetera.Measurement table
Rod Number | Diameter | Weight | Area | Pieces | |
|---|---|---|---|---|---|
– | in | mm | kg/m | mm2 | no. |
3 | 3/8 | 9.5 | 0.557 | 71 | 1494 |
4 | 1/2 | 12.7 | 0.996 | 127 | 842 |
5 | 5/8 | 15.9 | 1.560 | 199 | 541 |
6 | 3/4 | 19.1 | 2.250 | 287 | 371 |
8 | 1 | 25.4 | 3.975 | 507 | 21 |
10 | 1 1/4 | 31.8 | 6.225 | 794 | 13 |
12 | 1 1/2 | 38.1 | 8.938 | 1,140 | 9 |
