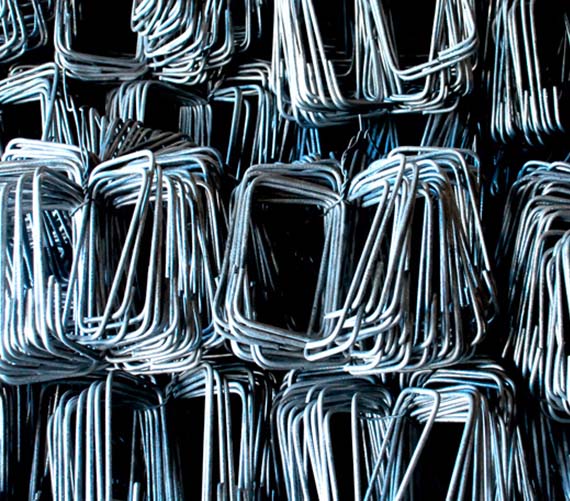

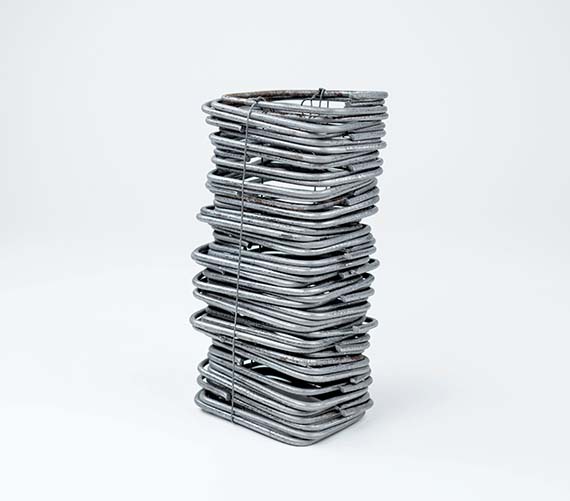

This product can be made using wire rod or cold-drawn wire.
Common applications
Used in the construction of beam cages using rebars and annealed wire.
Measurement table
Product
A
B
T
Diámeter
and steel grade
–
cm
cm
Tolerancy
–
Stirrup triangle 10×10
10
10
+- 5 mm
6.35 mm 1008
Stirrup triangle 12×12
12
12
+- 5 mm
6.35 mm 1008
Stirrup triangle 12×16
12
16
+- 5 mm
6.35 mm 1008
Stirrup Square 10×10
10
10
+- 5 mm
6.35 mm 1008
Stirrup Square 10×16
10
16
+- 5 mm
6.35 mm 1008
Stirrup Square 10×20
10
20
+- 5 mm
6.35 mm 1008
Stirrup Square 10×30
10
30
+- 5 mm
6.35 mm 1008
Stirrup Square 12×12
12
12
+- 5 mm
6.35 mm 1008
Stirrup Square 12×16
12
16
+- 5 mm
6.35 mm 1008
Stirrup Square 12×20
12
20
+- 5 mm
6.35 mm 1008
Stirrup Square 12×30
12
30
+- 5 mm
6.35 mm 1008
Stirrup Square 15×15
15
15
+- 5 mm
6.35 mm 1008
Stirrup Squared 15×20
15
20
+- 5 mm
6.35 mm 1008
Stirrup Squared 15×30
15
30
+- 5 mm
6.35 mm 1008
Stirrup Squared 15×45
15
45
+- 5 mm
6.35 mm 1008
Stirrup Squared 20×30
20
30
+- 5 mm
6.35 mm 1008
Stirrup Squared 20×20
20
20
+- 5 mm
6.35 mm 1008
Stirrup Squared 35×35
35
35
+- 5 mm
6.35 mm 1008
