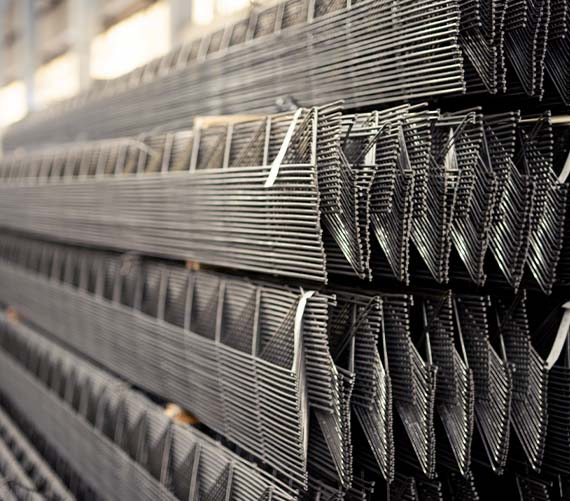

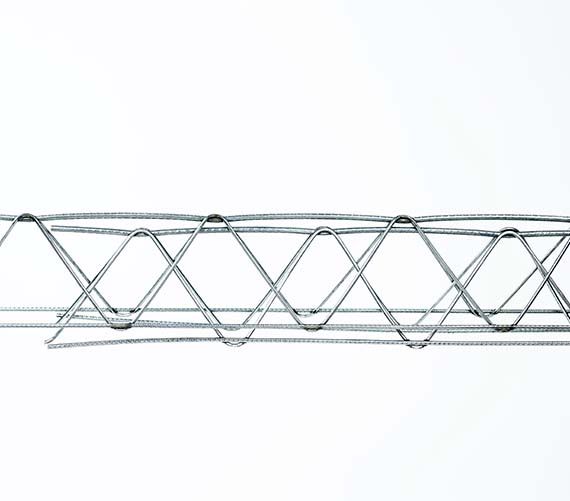

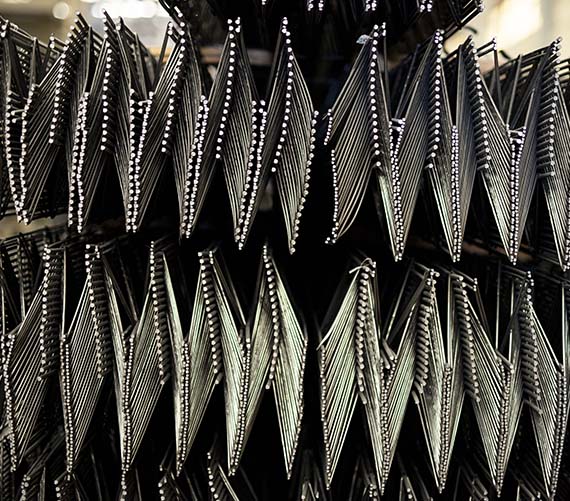

A byproduct of an arc welding process, lattice girder has a triangular structure formed by drawn wire of different sizes. Its design and high quality contribute to substantially optimize construction costs.
Common Applications
Primarily used in the manufacturing process of joist-slabs. Also used to lighten slabs in the construction industry.Measurement table
Design | Height | Length | Diameter of outer wires | Diameter of 3 inner wires | |||
---|---|---|---|---|---|---|---|
cm | m | mm | in | mm | in | Caliber | |
10-36 | 10 | 6 | 6.35 | 1/4 | 8 | 4.11 | 0.162 |
12-36 | 12 | 6 | 6.35 | 1/4 | 8 | 4.11 | 0.162 |
14-36 | 14 | 6 | 6.35 | 1/4 | 8 | 4.11 | 0.162 |
10-64 | 10 | 6 | 6.35 | 1/4 | 6 | 4.87 | 0.191 |
12-64 | 12 | 6 | 6.35 | 1/4 | 6 | 4.87 | 0.191 |
14-64 | 14 | 6 | 6.35 | 1/4 | 6 | 4.87 | 0.191 |
21-64 | 21 | 6 | 6.35 | 1/4 | 6 | 4.87 | 0.191 |
