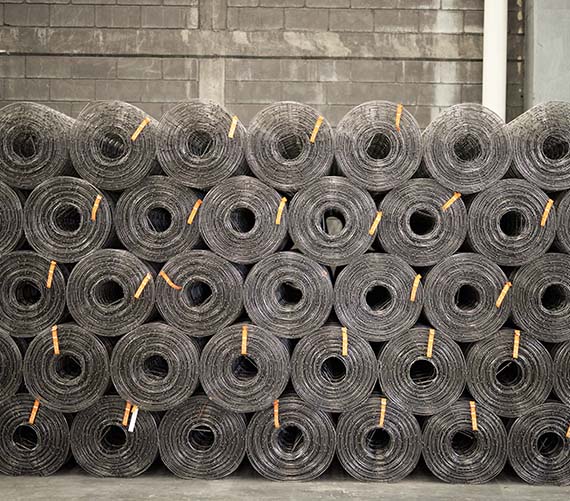

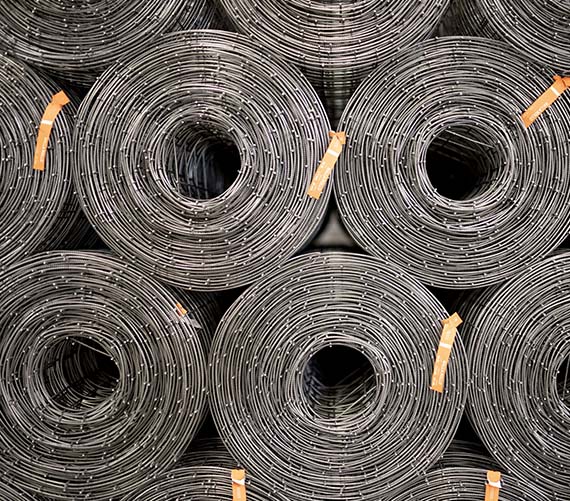

Wire mesh is made by welding wire both longitudinally and transversally, giving special care in preventing oxidation in joints and in that their penetration rate is optimal to meet top international standards. These features make it a high quality product.
Common applications
Mainly used in the construction industry as reinforcement for concrete floors in homes, warehouses, patios, roads, airport runways, tunnels, dams, bridges, stadiums, among others.Roll presentations
Product | Wire Diameter | Steel Area | Presentation | Dimensions |
|---|---|---|---|---|
– | mm | cm²/m | m² | – |
6×6 – 10/10 | 3.42 | 0.606 | 100 | 2.5×40 |
6×6 – 08/08 | 4.11 | 0.871 | 100 | 2.5×40 |
6×6 – 06/06 | 4.88 | 1.227 | 100 | 2.5×40 |
6×6 – 04/04 | 5.72 | 1.686 | 100 | 2.5×40 |
Sheet presentation
Product | Wire Diameter | Steel Area | Presentation | Dimensions |
|---|---|---|---|---|
– | mm | cm²/m | m² | – |
6×6 – 10/10 | 3.43 | 0.606 | 15 | 2.5×6 |
6×6 – 08/08 | 4.11 | 0.871 | 15 | 2.5×6 |
6×6 – 06/06 | 4.88 | 1.227 | 15 | 2.5×6 |
6×6 – 04/04 | 5.72 | 1.686 | 15 | 2.5×6 |
